Walter Racecraft LS swap fuel system kit

Walter Racecraft LS swap fuel system kit

$312.00
$312.00
Sale Sold out
Style

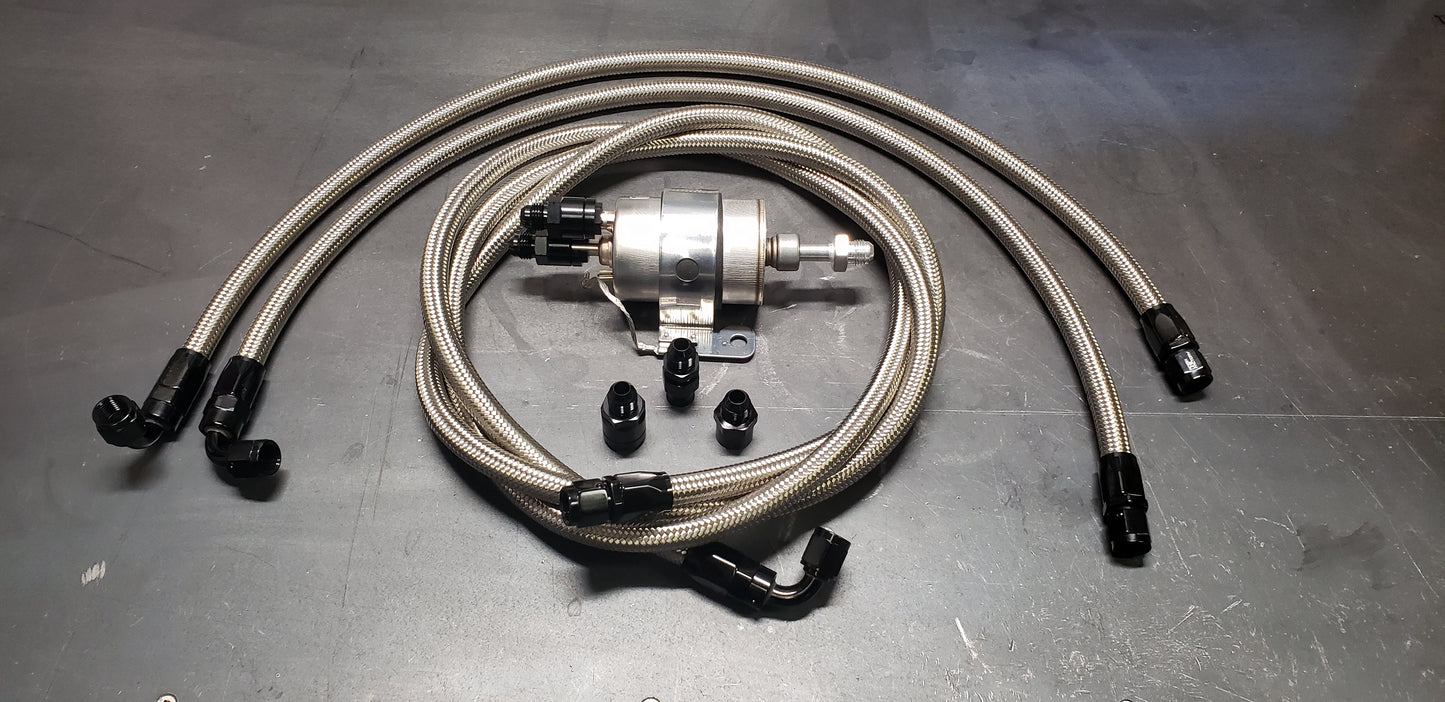

Designed to be a direct bolt in for 85-92 EFI cars, this system comes with all the necessary fittings, lines, and the "vette filter" regulated fuel filter for your LS swap.  I even include the quick connect fitting for the fuel rail.  If you have an 82-84 car or an OE carb car, just grab an EFI sending unit for making the retrofit more streamlined.  The lines are all braided stainless 6an stuff and comes pre-assembled so you don't have to worry about cutting and prickling your fingers up during assembly (don't worry, I stick myself at LEAST twice every kit for good measure!)

This swap system is designed to feed up to about 600 flywheel hp with the Walbro 255. If you have larger fuel volume requirements, please email me to discuss a custom fuel system.

*Installation note! This system is designed to place the filter in the factory 85-92 EFI fuel filter location, which is under the driver's side rear set hump near the rear lca torque box.  The 2 short hoses go from the sending unit to the filter on the side of the filter with the 2 ports.  One is the pressure from the pump and the other is the return to the tank  The long hose goes from the single port on the filter to the fuel rail.

If you have a return style fuel rail, you will need to swap the rail out for a non-return style.

*Processing Note: Fuel systems are built to order.  Please allow 3-5 days working time before shipping.
